6RSTAGER

This page is dedicated to the 6RSTAGER, which builds upon True Motorsport’s existing Smooth Stage technology. The 6RSTAGER has been adapted to control the Ford 6R80 Transmission in order to effectively stage at the drag strip.

The name says it all… at the drag strip or on the street, the Next GEN 6RStager is the perfect solution for staging the Ford 6R80 Transmission

Available for 11-17 6R80 model years, the 6RStager takes industry known 6R80 Transbrake enabling techniques and blends this with the Smooth Stage modulation algorithm to create an all in one staging solution. The 6RStager will enable the 6R80 Transbrake when positioned into the Pre-Stage beams, so that the power adder of choice can build up boost. Once the target boost is achieved, the vehicle can slowly roll into the Staging beams without upsetting the suspension by simplify holding down the Stage button until the desired distance is achieved.

The NEXT GENERATION 6RSTAGER IS HERE!

The Next Gen 6RStager is here and builds upon the original features by introducing these new features:

The Next Gen 6RStager integrates the “optional” LPC relay inside of the enclosure. The LPC relay is typically not needed on built 6R80 Transmissions, but can help the Line Pressure with Stock Transmissions for increased Transbrake hold capability.

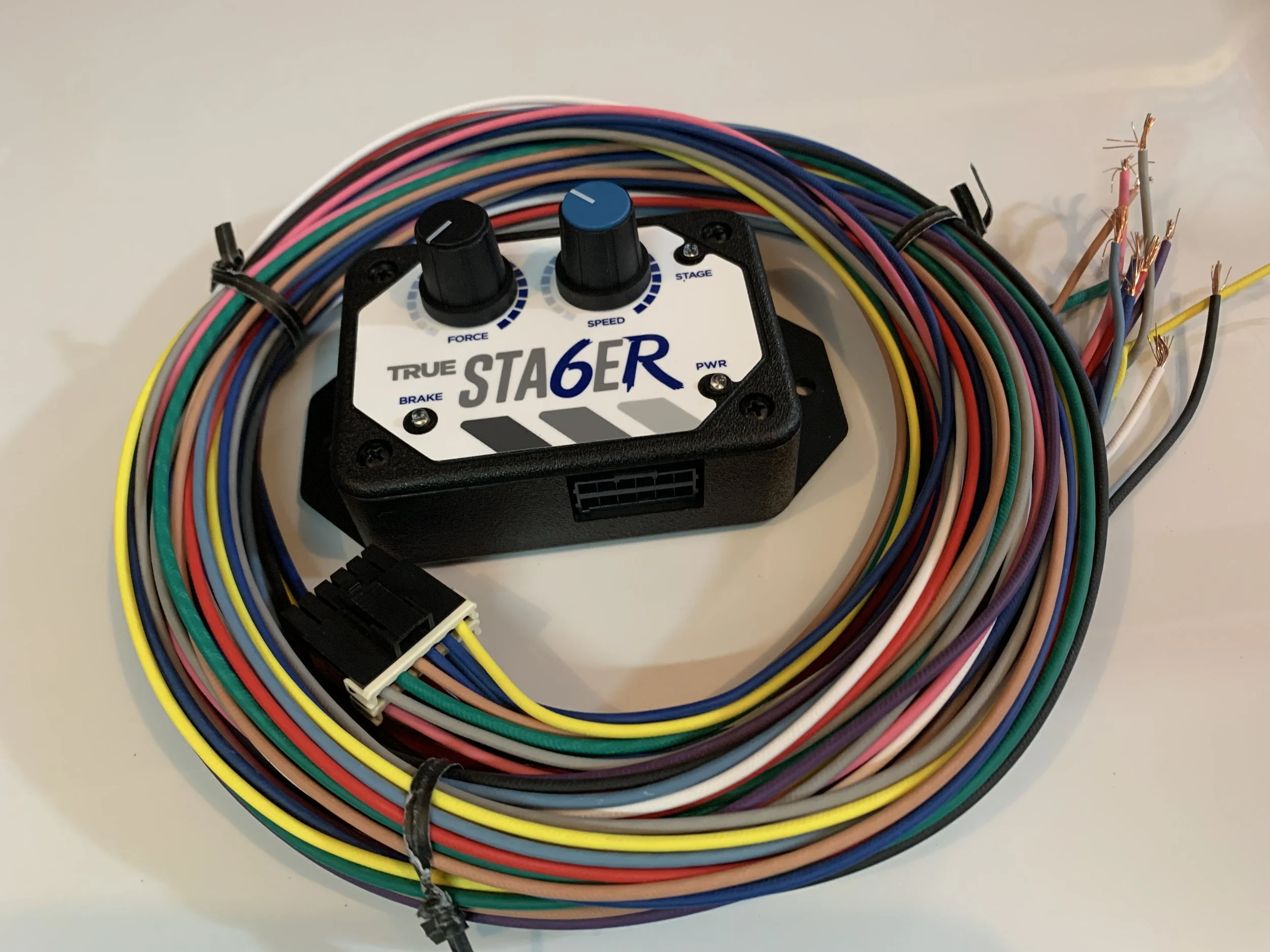

Separate harness that plugs directly into the 6RStager and allows for easier installations.
Within the latest Firmware code, the 6RStager has a new proprietary feature known as adaptive bump. The feature builds upon the already proven Smooth Stage pulsing algorithm, by providing options for additional Smoothness (more info to come later on this)
Last, but certainly not least, the Next Gen 6RStager has improved the Transbrake button monitoring for faster Transbrake release which equals quicker reaction times.

NEXT GEN 6RStager

$365.00

Quantity:

Add to Cart

Features and Technical Spec’s:

Designed specifically to enable the Transbrake on 2011-2017 6R80 Transmission. (Replaces and eliminates the need for a dual relay configuration and uses the same wires to interface to the transmission). This device will work on 4R200 setups too!
Safe Transbrake enable feature in which the Transbrake can only be engaged when the foot brake is depressed. (This prevents damage by accidentally hitting the Transbrake button)
12 Force/12 Speed settings to allow for easy adjustability to dial in the desired approach speed while Staging
Incorporates the DeeSpeed 2.0 system architecture to prevent the stuck pedal condition for 15-17 model years. (When installed correctly this brake pedal interface should prevent the Torque Source 14 error. It will also turn the brake lights ON while the Transbrake button is engaged)
LED indication of Power, TransBrake and Stage enable
** NEW ** -Separate wire harness for easier installation
** NEW **- Uses Adaptive Bump to enhance our proprietary modulation scheme designed specifically for the 6R80 for slowly rolling into the Staging beams
** NEW **-Quicker Transbrake release detection
Includes the new Brake Pedal Position Breakout Harness
